新鄉市宏源機械科技有限公司電話
首頁>產品中心>輸送機

輸送機

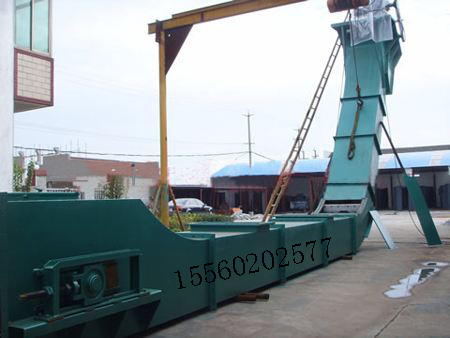

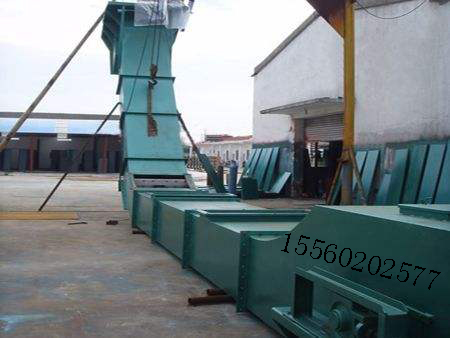

MS型埋刮板輸送機

MS型埋刮板輸送機

【產品類別】輸送機

【性能評測】★★★★★

【產品簡介】MS型埋刮板輸送機 MS 型埋刮板 輸送機 產品概述: MS型埋刮板輸送機是一種在封閉的矩形斷面的殼體中,借助于運動著的刮板鏈條輸送粉狀、小顆粒狀、小塊狀等散料的連續輸送設備。因

MS型埋刮板輸送機工作原理:

埋刮板輸送機在水平輸送時,物料受到刮板鏈條在運動方向的壓力及物料自身重量的作用,在物料間產生了內摩擦力。這種摩擦力保證了料層之間的穩定狀態,并足以克服物料在機槽中移動而產生的外摩擦力,使物料形成連續整體的料流而被輸送。
埋刮板輸送機在垂直提升時,物料受到刮板鏈條在運動方向的壓力,在物料中產生了橫方向的側面壓力,形成了物料的內摩擦力。同時由于下水平段的不斷給料,下部物料相繼對上部物料產生推移力。這種摩擦力和推移力足以克服物料在機槽中移動而產生的外摩擦阻力和物料自身的重量,使物料形成了連續整體的料流而被提升。
Working principles
Buried scraper conveyor in horizontal transmission materials, and scraper chain in the direction of the pressure and material, its weight in the materials produced in the friction.This state friction force to ensure the stability of the material between layers, and enough to overcome the material move in machine groove and the external friction, make the material flow of the whole of the material to form continuous to be delivered.
Buried scraper conveyor in the vertical ascend, material scraper chain in the direction of the pressure, the pressure against the side of the material in the transverse direction, forming material in friction.At the same time because of the horizontal section of the continuous feeding, lower material successively passes on the upper material force.The friction force and force sufficient to overcome the material in a slot machine movement and the external friction resistance and the weight of the material itself, formed a continuous whole material flow of material and be promoted.
埋刮板輸送機

MS型埋刮板輸送機主要特點:
我公司生產的機型為通用型埋刮板輸送機,具有結構簡單,重量較輕,體積小,密封性好,安裝維修比較方便。它不但能水平輸送也能傾斜和垂直輸送;不但能單機輸送,而且能組合布置,串接輸送;能多點加料,也能多點卸料,工藝布置較為靈活。由于殼體封閉,在輸送物料時可以顯著改善工作條件,防止環境污染。
Features:
Our company production model for universal buried scraper conveyor, has simple structure, light in weight and small size, good sealing, convenient installation and maintenance.It can not only horizontal conveying can be inclined and vertical transmission;Not only can single machine transmission, and can combine to decorate, concatenated conveying;Can multipoint feeding, can also be a multipoint discharge, process arrangement is more flexible.Due to the closed shell, when conveying material can greatly improve the working conditions, prevent environmental pollution.



MS型埋刮板輸送機注意事項
Notes

:

MS型埋刮板輸送機技術參數:
Parameter:
通用型埋刮板輸送機對所輸送的物料有下列要求:
1、物料容重:γ=0.2~1.8t/m3;
2、物料溫度:t<100°C;
3、含水率:對于一般物料,不得使物料用手捏成團后不易松散;對于含水率增加后會增大粘著性和壓結性,不能使物料嚴重粘附刮板。
粒度:物料的粒度與其硬度有關,粒度太大,則不宜輸送。對物料粒度的要求見下表:
Universal buried scraper conveyor for conveying the material has the following requirements:
1, material density, gamma = 0.2 ~ 1.8 t/m3;
2, the material temperature: t < 100 ° C;
3, the moisture content: for general materials, can not make the material after kneading dough by hand is not easy to loose;For moisture content will increase after increasing the viscosity and pressure, can't make serious adhesion material scraper.
Related to its hardness of granularity: material particle size, particle size is too big, is not conveying.For material particle size and demanded to see the table below:
傳動型式 功率范圍 備注
彈性聯軸器直接傳動 2.2~37     功率≤200kw時電壓為380V
     功率≥220kw時電壓為6000V


Y系列電機加液力偶合器 45~315
電動滾筒直接傳動 2.2~55
繞線式電機 220~800
通用型埋刮板輸送機不適應輸送高溫的、有毒的、易爆易燃的、磨損性很強的、腐蝕性很強的、粘附性很強的、懸浮性很強的、流動性特好的、堅硬的和脆性很大又不希望被破碎的物料。
有這些特性的物料需要采用埋刮板輸送機時,可設計為:耐高溫型、耐腐蝕型、耐磨型、全氣密型和防爆型等特殊機型,本公司可以生產。
水平型埋刮板輸送機有普通型和大傾斜型之分,普通型的安裝傾角0°≤α≤15°,大傾斜型的安裝傾角為15°<α<30°。
Universal buried scraper conveyor is not fit for the transport of high temperature, toxic, explosive flammable, corrosive wear resistance strong, strong, strong adhesion, suspended sex strong, good liquidity, hard and brittle materials a lot and do not want to be broken.
Materials with these features requires a buried scraper conveyor, can be designed as: high temperature resistant, corrosion resistant, wear resistant, airtight and explosion-proof special models, such as the company can produce.
Horizontal buried scraper conveyer has a regular and large tilt, normal installation Angle 0 ° or less alpha 15 ° or less, big tilting type installation Angle is 15 ° < alpha < 30 °.

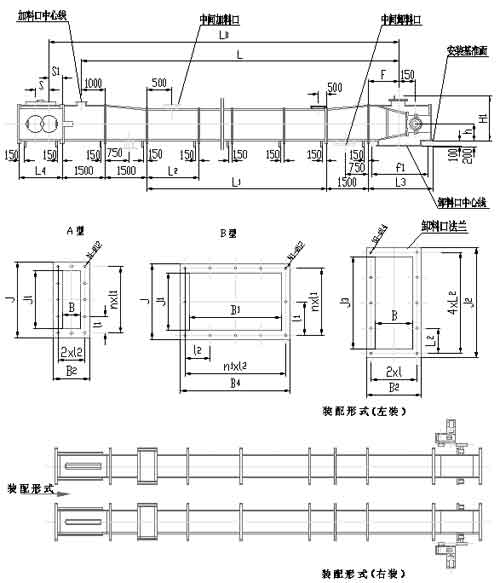

MS32、MS40型埋刮板輸送機安裝尺寸表:
Installation dimension
型號 B B1 B2 B3 B4 b c d
MS32 320 800 420 495 900 32 130 110
MS40 400 890 500 578 990 36 150 130
型    號 H H1 H2 J J1 L(m)
MS32 572.5 723 820 670 570   6.65-78.15
MS40 612.5 763 860 800 700
型    號 L0(m) L1(m) L2
MS32 8.33-79.83 2-73.5 800,1500,2000
MS40
型    號 l nxl1 l2 N N1 t
MS32 130 4x160 145 14 20 116.5
MS40 156 5x154 160 16 22 137.2
